Table Charts in Wrike Reports
Wrike's Reports table charts show you the number of tasks or projects that meet the criteria you select in Report Builder. Table charts can have groupings, allowing you to build complex reports that capture a high level of detail.
Note
On Enterprise accounts, the types of users who are allowed to use this functionality may differ due to user types settings.
Table charts are best used when you need to:
A None section is added to reports if there are tasks or projects that meet the report's criteria, but the tasks or projects don't have information entered in the field that you're grouping by. For example:
-
A task without a designated start date would have undefined start date data and, if you're grouping by start date, that task would go in the None section.
-
If a project report is grouped by a custom field and the project doesn’t have data entered for that custom field, then that project appears in the None section.
When you want (or need) to, you can refresh your report to ensure you're seeing the most up-to-date data.

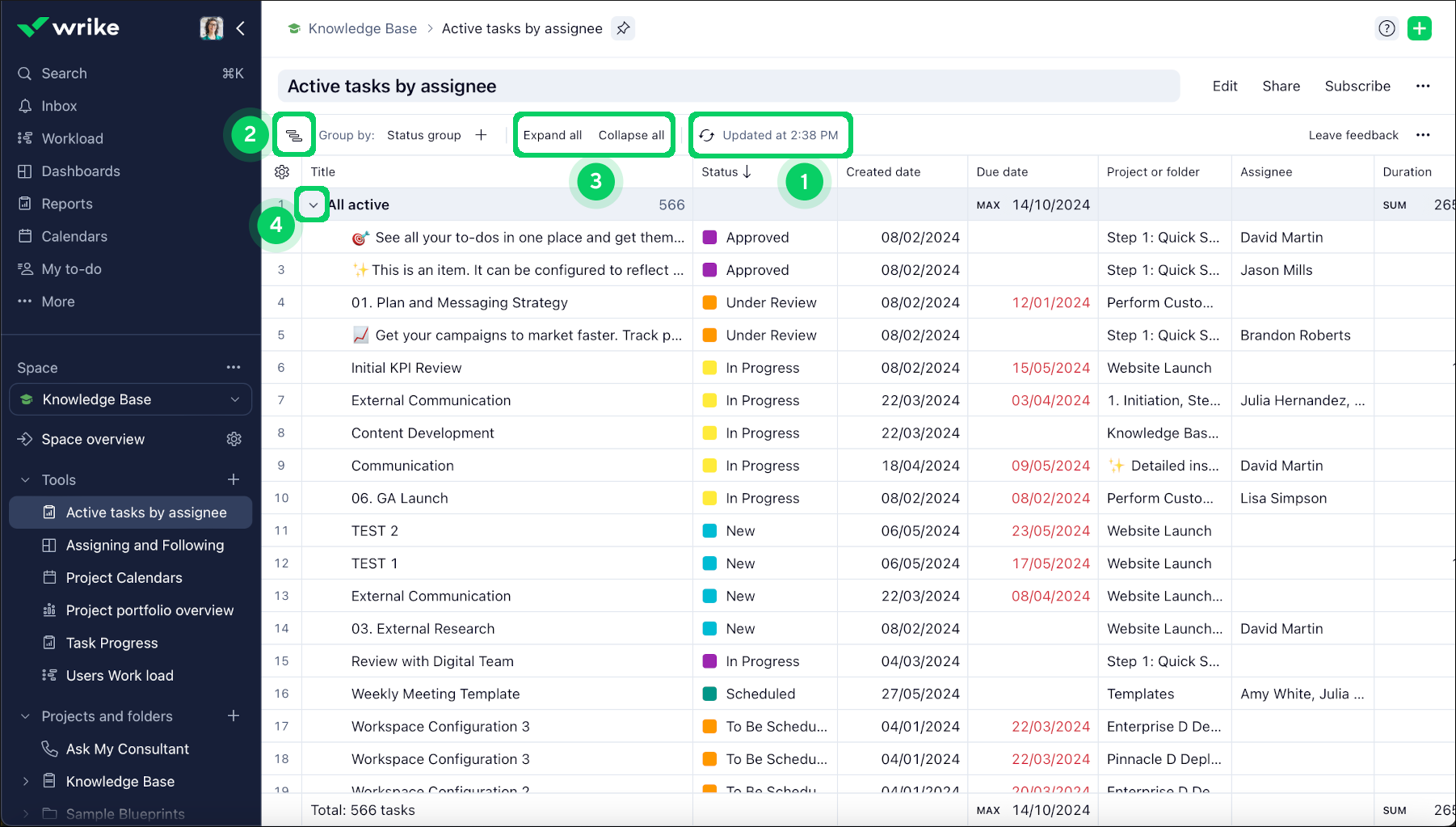

To do this, click the round refresh icon 1 at the top of the report.
There are two display options for reports: Structured hierarchical or Custom grouped.
Use the Structured hierarchical view to see items organized by folder, project, and task location. This is also how items are displayed in Table view. To switch to this view, click the icon in the upper-left corner of the chart 2.
Note
You can't use groupings when you're using the structured hierarchical view.
Use the Custom grouped view when you want to display tasks based on applied groupings. To switch to this view, click the button in the upper-left corner of the chart.
Collapse all sections (either groupings or folders/projects depending on what view you're in) to get an overview of the number of tasks in a section or expand all sections to see a more detailed view.
To do this, click Expand all or Collapse all at the top of the report 3 to expand or collapse sections respectively.
Customize your view so you see only the groupings or folders/projects/tasks you're interested in.
To do this, click the caret icon to the left of each grouping or folder/project name 4 to expand or collapse that section.
You can add or remove columns related to project or task attributes (depending on which type of report you built) and custom fields.

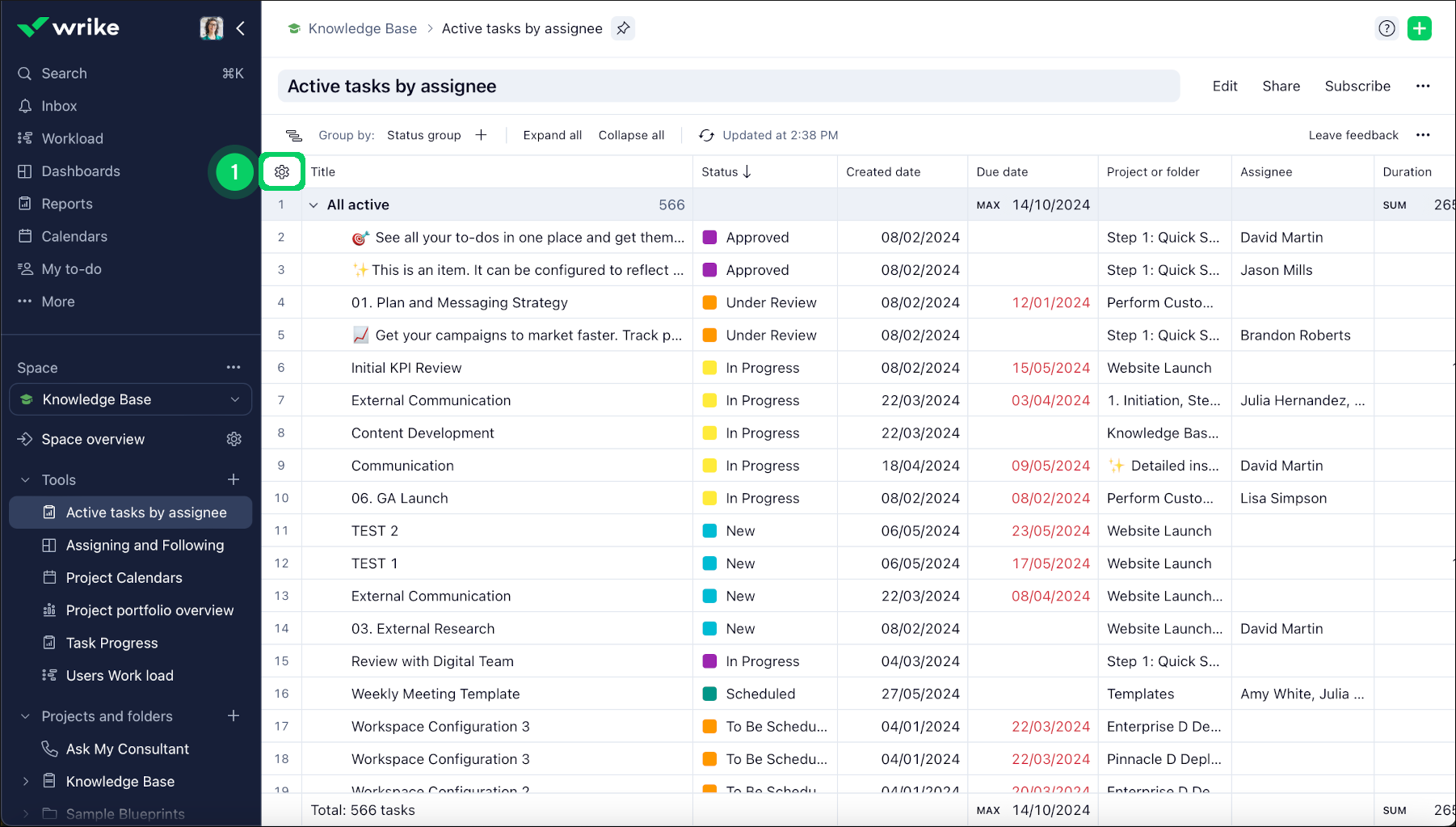

To do this, click the gear icon in the upper-left corner of the table 1 and check or uncheck the box next to each column name to add or remove that column from the report.

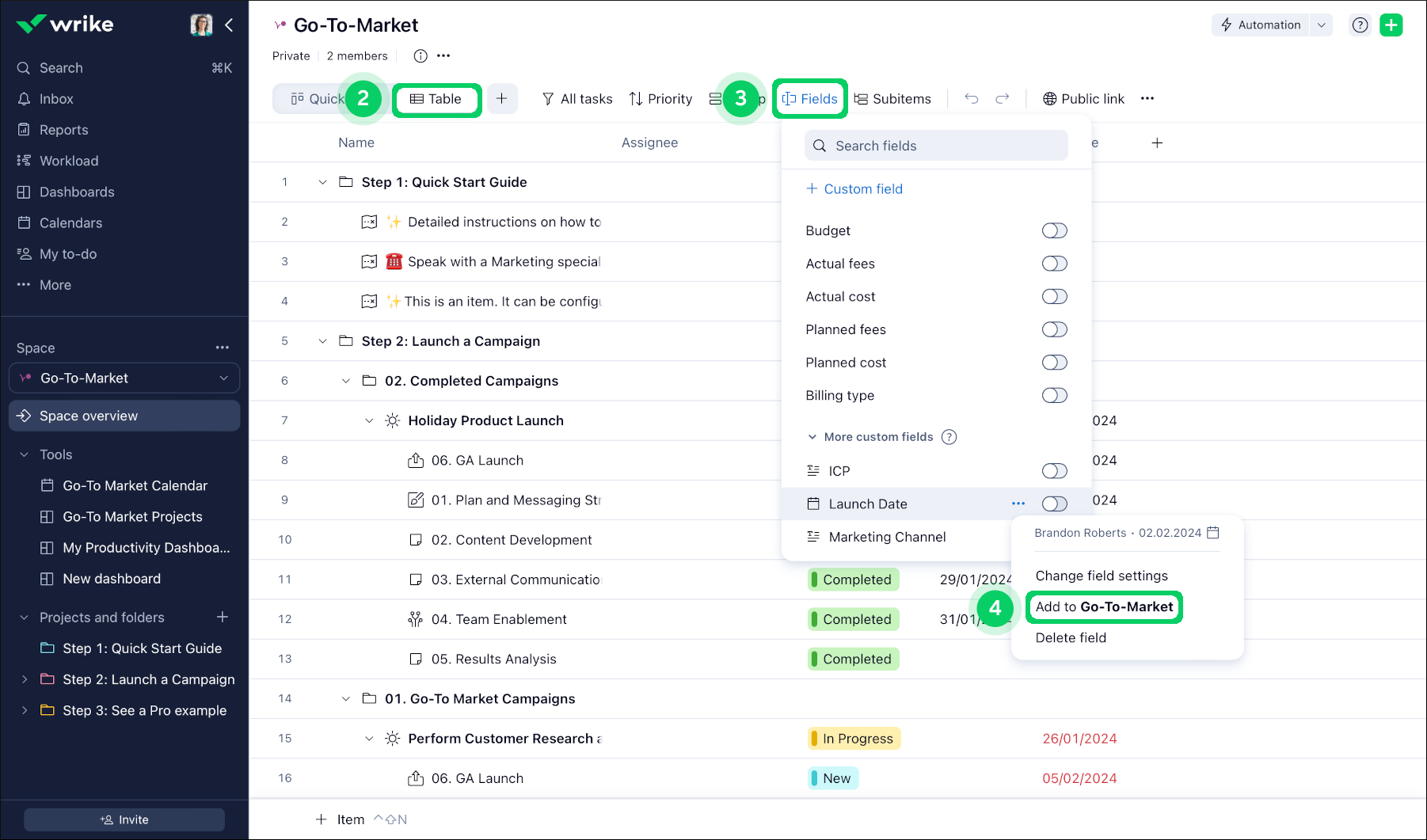

Under the gear icon, you will only see those custom fields that are directly added to the source location selected for the report. In order to add more custom fields, open the required space or folder/project location in the Table view 2. Find the required custom field under the Fields 3 menu and explicitly add it to this location 4.

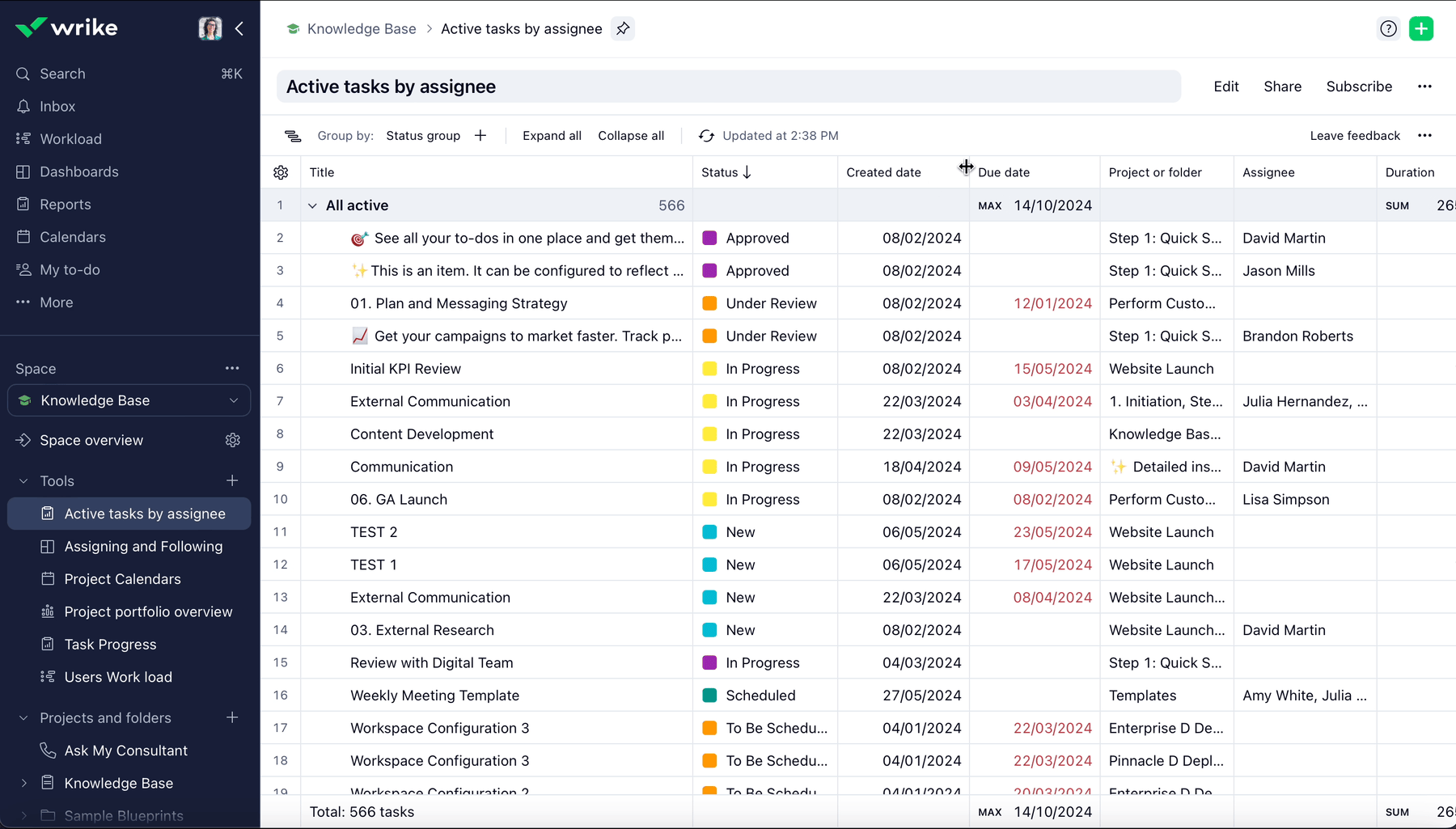

Rearrange the order of columns on the table report to see data in the sequence that best suits your needs.
To do this, click a column and drag it to the appropriate location on the table chart.
Users can enable the option to have text in report cells wrapped. When you enable text wrapping, all text in that field becomes visible instead of being cut off when it's too long.

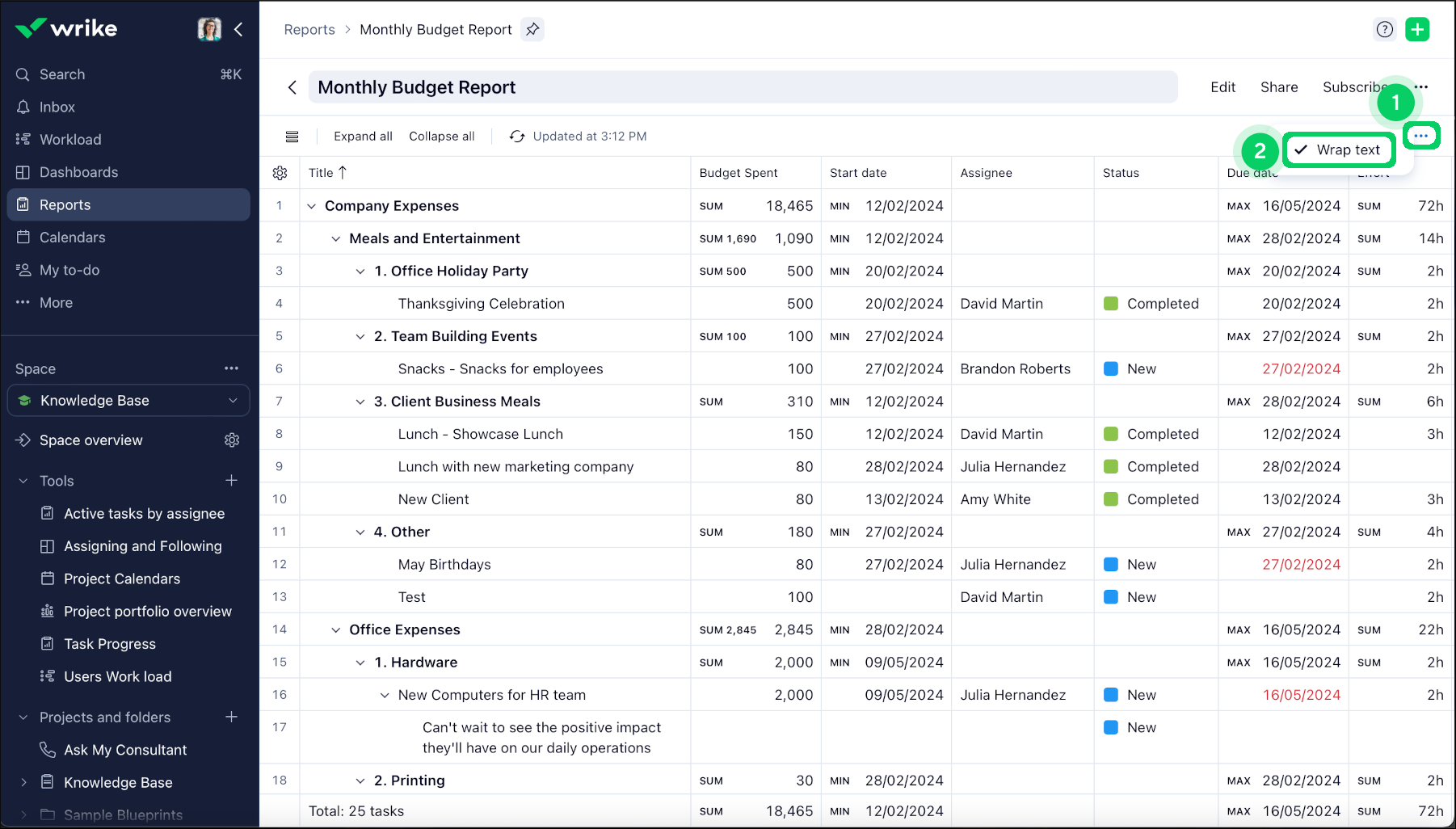

To enable text wrapping, click the three-dot menu button in the upper-right corner 1 and select (or deselect) Wrap text 2.
Note
Text wrapping works with reports that are 500 lines or fewer.
